Description

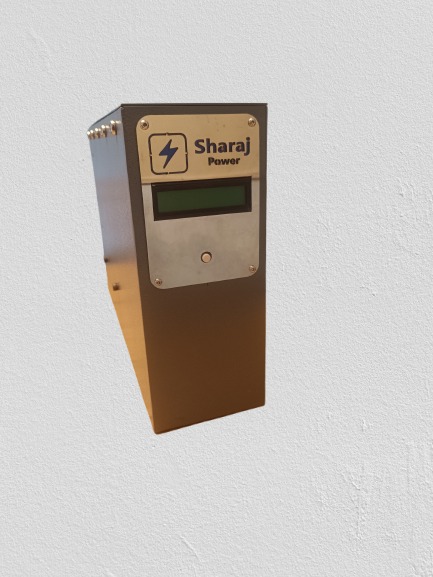

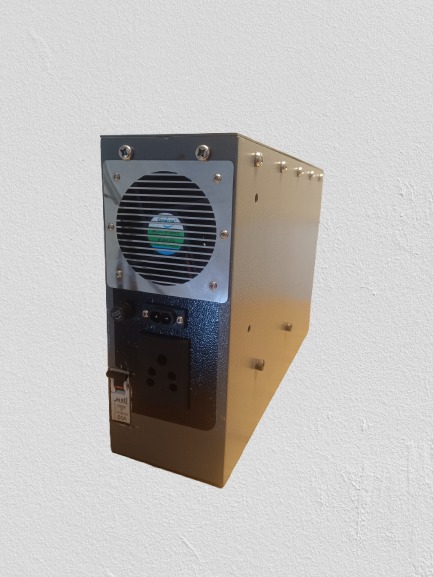

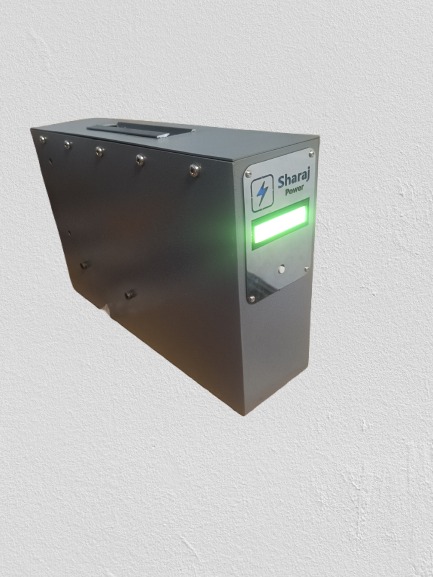

Sharaj Power’s SP 10 Power Pack is a compact and efficient energy solution featuring a 250W, 12V battery pack. Designed for versatility, it seamlessly integrates with solar panels and AC mains, providing reliable power for various applications. The system includes an intelligent charge controller that prioritizes solar charging, ensuring optimal battery health and longevity. With robust safety features like overcharge and deep discharge protection, the SP 10 Power Pack is ideal for residential, commercial, and mobile setups requiring dependable backup power.
Applications….
| Home | Offices | Telecom | UPS | Emergency Lighting |
| Security | Utility | Railways | Photovoltaic | Universal |
Technical Specifications….
| Model | SP 10 POWER PACK |
| Battery Voltage | 12V |
| Technology | DSP Based Full Bridge Topology |
| Input/Output Phase | Single Phase |
| Output Voltage On Inverter Mode | 220 ± 2% |
| Output Frequency On Inverter Mode | 50Hz ± 0.1Hz |
| Changeover Time UPS Mode | <10 ms |
| Changeover Time INV Mode | <30 ms |
| Changeover Mains to UPS and UPS to Mains | Automatic |
| Output Waveform on Backup Mode | Pure Sine Wave |
| THD | <3% (On Resistive/Linear Load) |
| Efficiency* | >85% |
| Charger | CCCV Charger |
| Charging Current | Up to 15Amp* |
| Surge Load Capacity | 300% |
| Input Voltage Range (UPS Mode) | 170-260+/-10V |
| Input Voltage Range (INV Mode) | 100-290+/-10V |
| Output Voltage on Mains Mode | Same as Input |
| Output Frequency On Mains Mode | Same as Input |
| Display | 16×2 Alpha Numeric LCD Display with LED Indications |
| Display Parameters | Output Power (Watt), Mains AC Voltage, Output AC Voltage, Temprerature (Deg. C) Battery Voltage, Charging (Amp.) |
| Protections with Buzzer Indications | Low Battery, Overload, Short Circuit, Over Temerature |
| Auto Reset Features | Yes |
| PMW Solar Charge Controller | 12×50 (600W Max) |
| Battery Pack | 576W |
| VA Rating | 400 VA |
| Wattage | 250W |
